Based on Craig Anderson’s Tube Sound Fuzz circuit, Jeorge Tripps made some modifications and created his own pedal model.

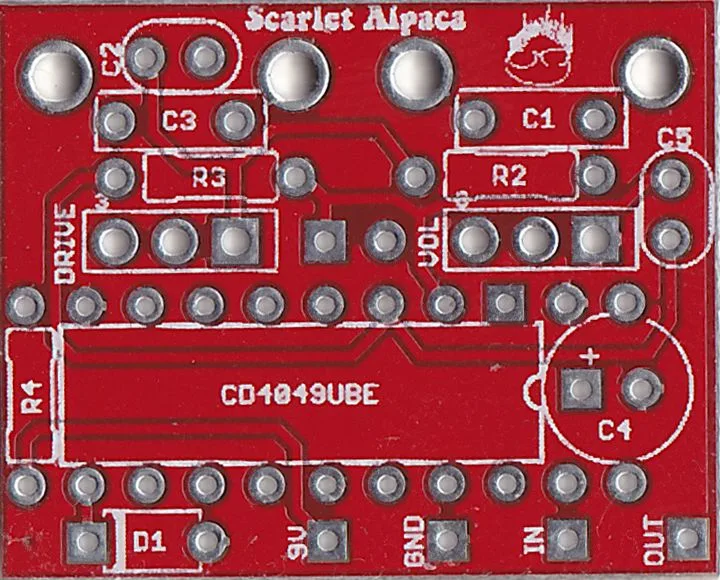

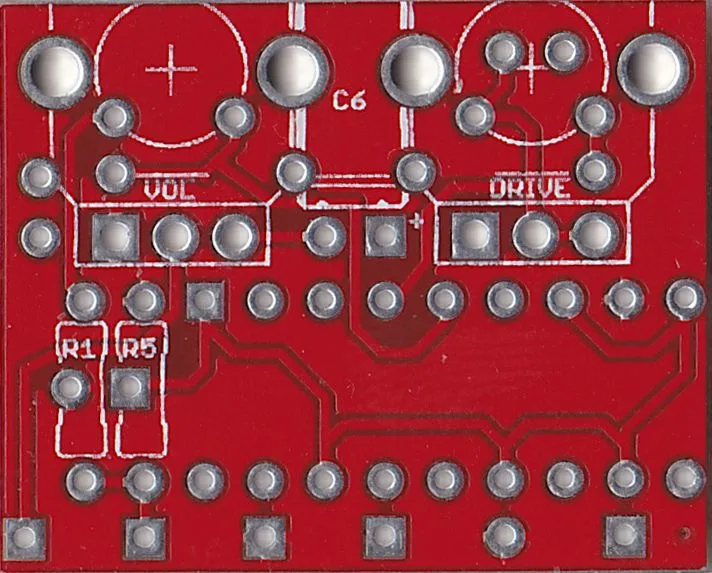

My layout was designed to fit nicely in a 1590A using 9mm pots. However, as always, you can put this in a larger enclosure and use other pots if you don’t mind offboard wiring.
Layout by delyk PCBs
James O’Brien (verified owner) –
Scarlet Alpaca Rocks!
compact, well layed out board. Perfect 1590a build. Sounds great!
Rob Rushing –
I dig it!
Sounds great!
Chris Wright (verified owner) –
Read Deal Distortion.
this is another secret weapon I pull out when I want that sweet Mike Campbell (Tom Petty) style lead tone. And again, I made mistakes along the way and Kyle was amazing at helping me figure out what I did wrong! Great customer service.
JP (verified owner) –
Very cool CD4049 based fuzz. Most of the projects I have used with the CD4049 end up with the Velcro ripping gated fuzz that I enjoy. This one surprised me with its tonal variety and placed after a wah with a little boost multiplies the fun. Great design, simple, and easy to build. I ordered another for a combo build!
