When I first started playing guitar, I originally thought tremolos were pointless. Then I heard this effect and I had to have it. I didn’t see many options for good boards, so I gave it a shot.

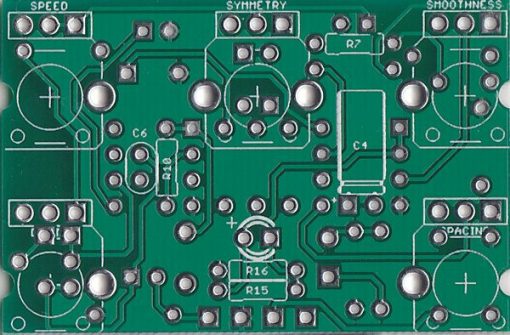

I like effects in the smallest enclosure possible. So, this layout gives you five external pots and an internal trim; it also gives a pretty flashing LFO LED.
This is a pretty medium build, just take it slowly. Plan out your soldering carefully since a specific order is pretty important.
Layout designed by delyk PCBs
