Charge Pump PCB
Original price was: $5.00.$4.00Current price is: $4.00.

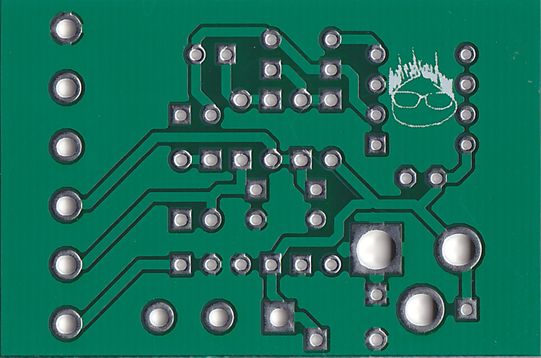

Based on R.G. Keen’s schematic, this board will provide approximately 18V, 25V, 33V, and -9V off of a single 9V source. Also, it has an option for a 9V sag, letting you dial in a value between 0 and 9V.
Out of stock
You must register to use the waitlist feature. Please login or create an account
Minor fix required. Add a 2k2 resistor from lug 3 of the +9V_SAG to ground. Only necessary if wishing to use the sag feature.
Layout designed by delyk PCBs
| Weight | 0.1623 oz |
|---|---|
| Dimensions | 1.218 × 1.830 in |
| Difficulty |
